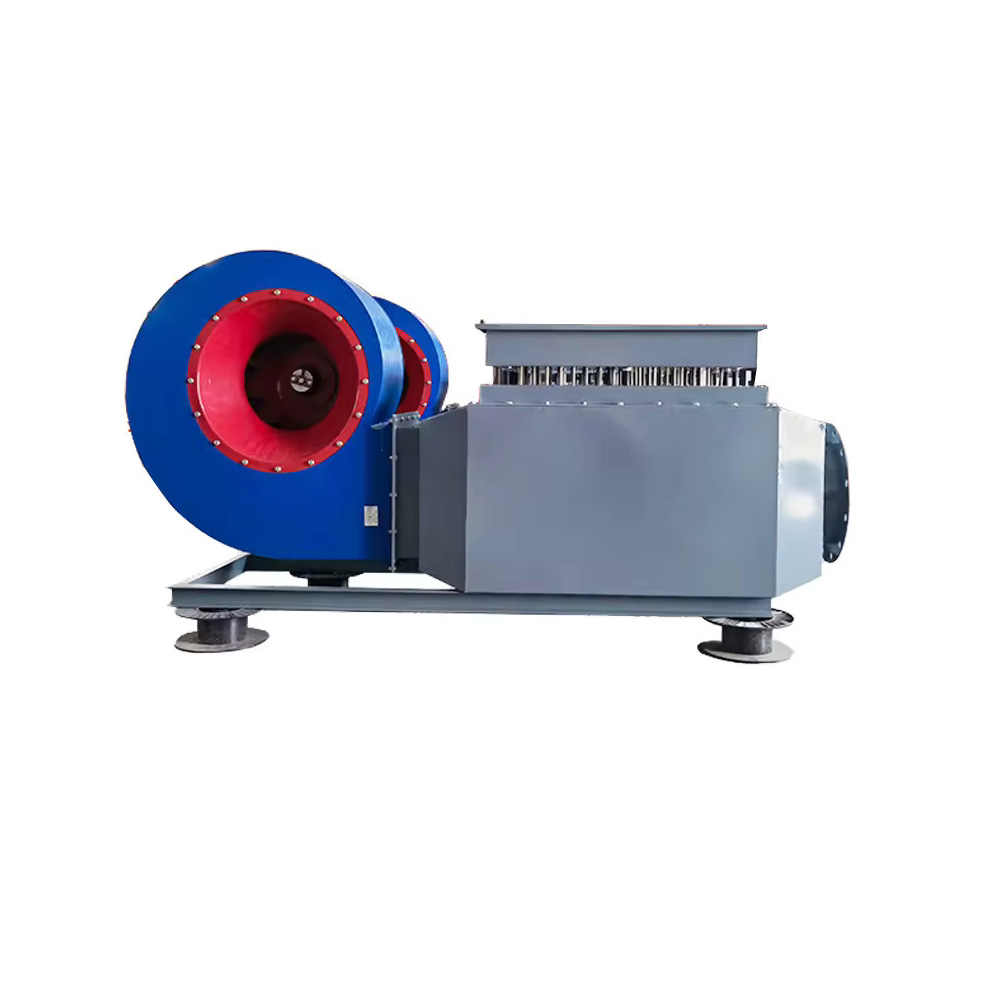

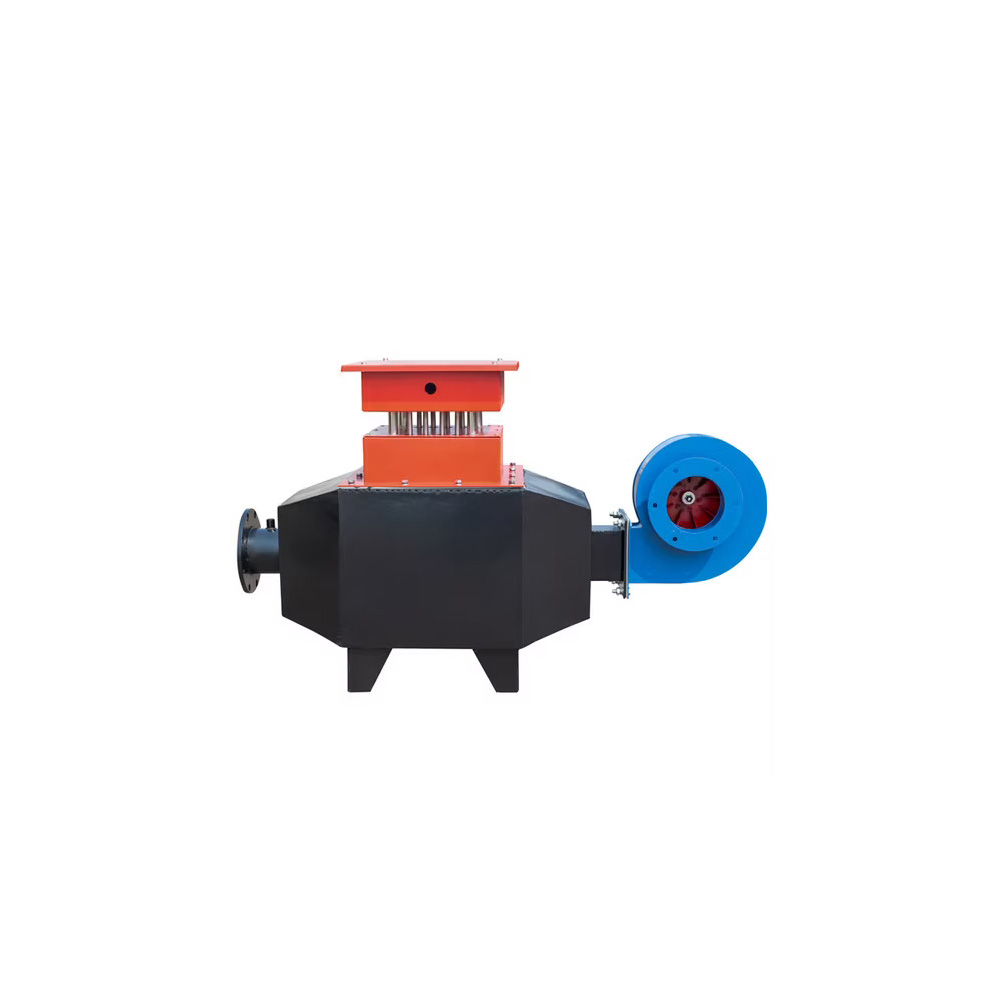

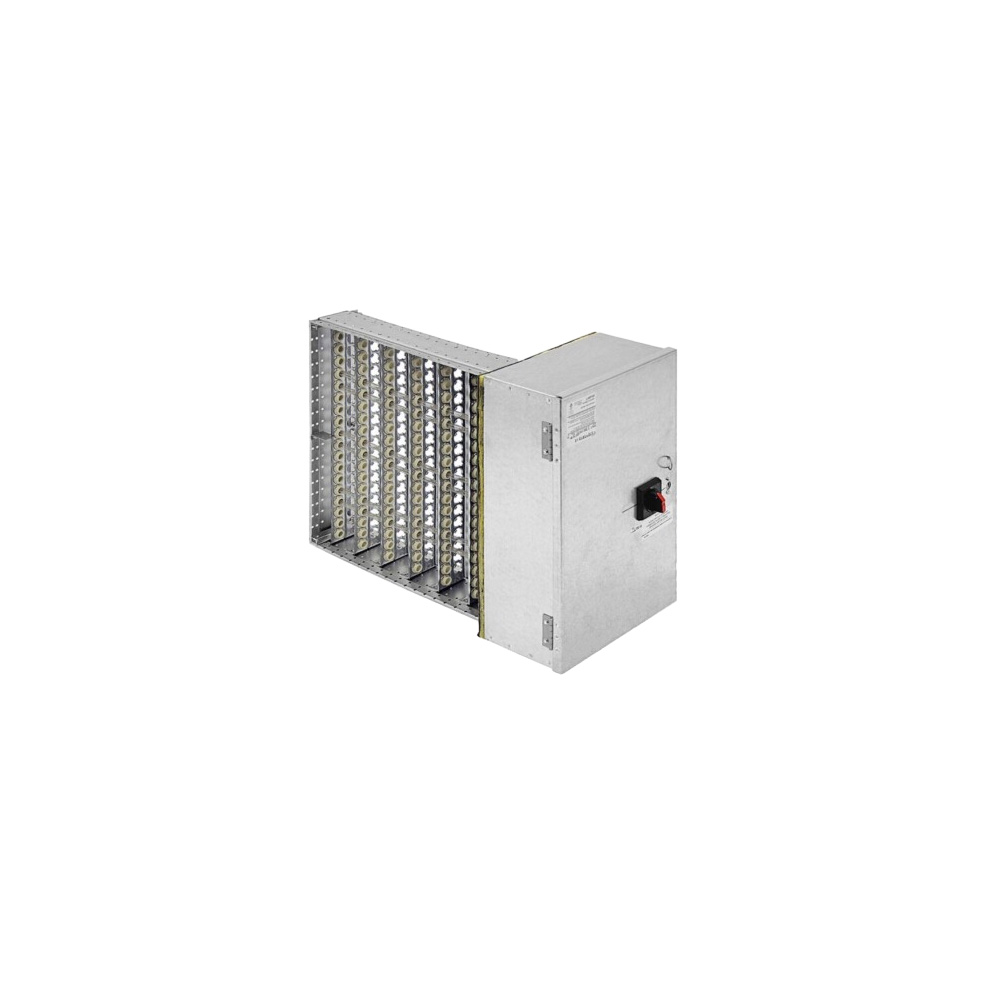

Duct heaters are designed to heat air or gases directly within a duct or airflow system. They are widely used in HVAC systems, industrial process heating, and drying applications. Available in open-coil, tubular, and finned-tubular designs, these heaters provide efficient, uniform temperature control with minimal pressure drop.
Constructed with corrosion-resistant materials and customizable mounting options, duct heaters can be integrated into both small and large air handling systems. Optional temperature control systems ensure precise heating for process-critical applications.
| Parameter | Value / Range |
| Frame Material Options | Galvanized Steel, SS304/310/316/321 (application dependent) |
| Heating Element Materials | SS304/310/316/321, Incoloy, Titanium (custom options) |
| Element Configuration | Open Coil, Tubular, Finned Tubular (optimized designs) |
| Maximum Watt Density | Up to 40 W/in² (6.2 W/cm²) |
| Power Rating Range | Up to 2 MW (custom ratings available) |
| Voltage Options | Up to 600V AC/DC (customizable configurations) |
| Air Velocity Range | 0.5–20 m/s recommended for optimal performance |
| Operating Temperature Range | –20°C to 650°C air temperature |
| Pressure Drop | Optimized low pressure drop design |
| Temperature Control Accuracy | ±2°C with integrated sensors and controllers |
| Safety Features | Airflow interlocks, thermal cutouts, over-temp protection |
| Mounting Options | Flanged, slip-in, custom configurations available |
| Enclosure Rating | IP65/67 standard, hazardous area options available |
