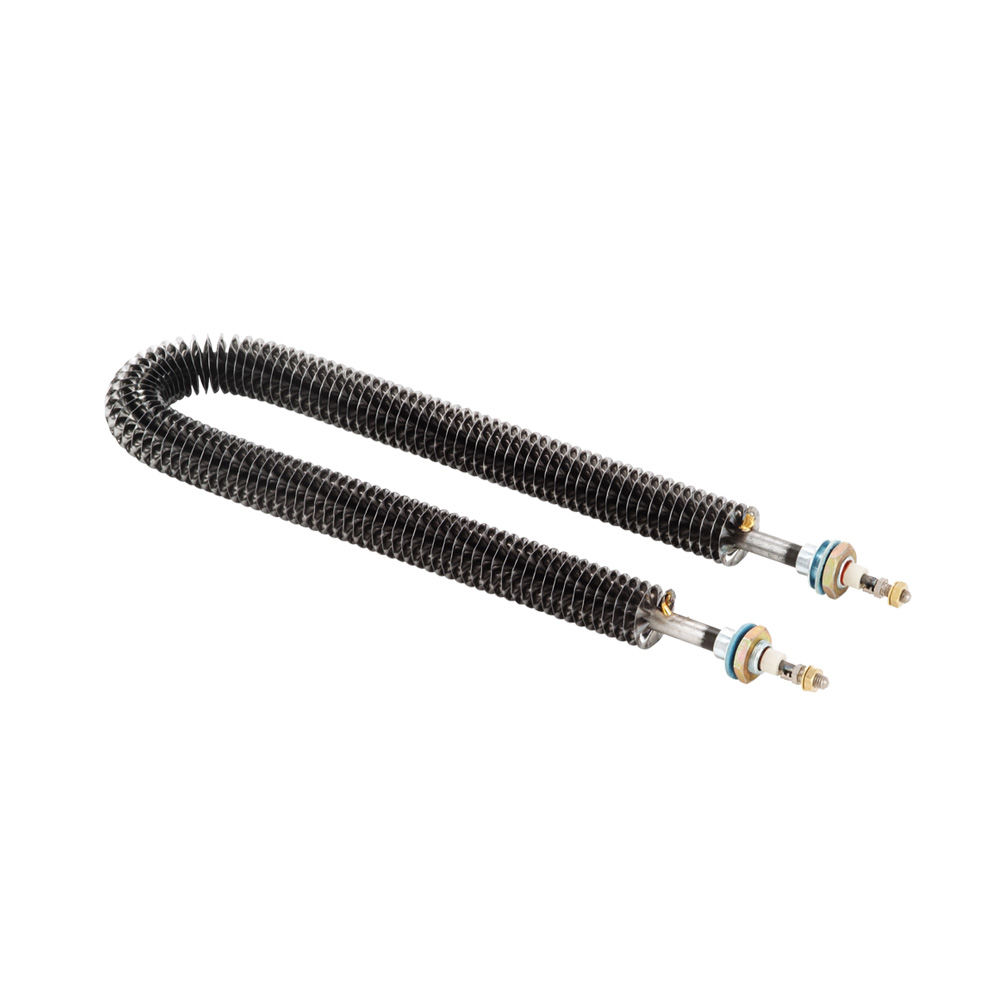

Finned Tubular Heater

Finned tubular heaters are designed to provide efficient and uniform heating of air and gases in ducts, ovens, tunnels, and process equipment. By bonding aluminum, stainless steel, or GI fins to the tubular sheath, the effective surface area is significantly increased, enhancing heat transfer and promoting rapid convective heating.

Available in custom lengths, bends, and fin pitches, these heaters are adaptable to a wide variety of industrial and commercial heating systems. With rugged construction and optional moisture protection, finned tubular heaters ensure long service life, high efficiency, and reliable performance in demanding environments.

As a premier manufacturer, Subhot Enterprises Pvt. Ltd. specializes in designing and engineering high-performance Finned Tubular Heater in Delhi tailored for demanding applications. Built using top-grade elements, our solutions focus on long-term sustainability and heavy load compliance for units across Delhi.

Whether your facility requires standard configurations or highly customized specifications, our range of Finned Tubular Heater delivers consistent performance under harsh industrial environments. Engineering compliance and custom fitments are double-tested before shipping the batch to your exact industrial site in Delhi. Contact our technical expert team today for standard pricing or a tailored business quotation for your operations.

Advantages

  • Enhanced Heat Transfer – Fins increase surface area, promoting efficient convection.
  • Durable Build – Rugged sheath materials for high-temperature and corrosive environments.
  • Energy Efficient – Optimized design reduces heat loss and accelerates heat-up times.
  • Custom Engineering – Fin pitch, thickness, and element shape tailored to application needs.
  • Reliable Performance – Moisture seals and IP-rated enclosures for added protection.
  • Low Maintenance – Long service life with easy replacement of elements.

Applications

  • Air & Gas Heating – Convective heating in ducts and process chambers.
  • Industrial Ovens – Curing, baking, and drying tunnels.
  • Sterilization Systems – Autoclaves and medical-grade heaters.
  • Load Banks – Electrical load testing applications.
  • Food Processing – Packaging, drying, and temperature control systems.
  • HVAC Systems – Dehumidification and hot-air circulation units.

Features

  • Custom Bends & Lengths – Designed to fit any duct, chamber, or enclosure.
  • Moisture & Corrosion Resistance – Optional seals for harsh operating environments.
  • Fast Thermal Response – Rapid heat-up with minimal energy loss.
  • Uniform Airflow Heating – Optimized finned design ensures even temperature distribution.
  • Service-Friendly Design – Replaceable elements for reduced downtime.

Specification

Parameter Value / Range
Tubular Sheath Material SS304/310/316/321, Incoloy, Titanium (application dependent)
Heating Element Material NiCr or FeCrAl resistance coils with MgO insulation
Fin Material Options Aluminum, Stainless Steel, Galvanized Steel
Operating Temperature Range Up to 550°C (1022°F) in air applications
Maximum Watt Density Up to 35W/in² (5.4 W/cm²)
Power Rating Range 500W to 20 kW+ (custom ratings available)
Voltage Options 110V to 480V AC (custom voltages available)
Fin Pitch Range 2–10 fins per inch (custom spacing available)
Fin Thickness 0.4–1.0 mm (application optimized)
Tubular Diameter Options 6mm, 8mm, 10mm, 12mm (custom sizes available)
Heat Transfer Enhancement Up to 50% improvement over smooth tubes
Service Life 8,000 to 12,000+ hours typical operation
Environmental Rating IP54/66/67, hazardous area options available
Custom Configuration Options Unlimited shapes, sizes, and mounting arrangements
